I/O Modules
Modul penghubung perangkat sistem alarm.
Modul input/output yang menghubungkan perangkat eksternal ke sistem alarm untuk integrasi otomatis.
HS-ADD-I/O-1
Control Modules 1 In 1 Out
(with isolation function) Communication isolation function, when short circuit occurred in the module, the module will be automatically isolated from the main communication line.
Specifications:
- EOL : Below 10K Ω capacitor / address
- Operating Environment : °0 C- °50 C relative humidity below 85%
- Activating Current : 48mA
- Activating Current : 64mA
- Load Voltage Input : 24V DC
- Rated Voltage : 33V AC
- Output Contact Capacity : 30V DC / 2A (max)
- Output Contact Capacity : 30V D
- Dimensions : 80 (H) x 60 (W) x 30 (D) mm
- Dimensions : 87 (H) x

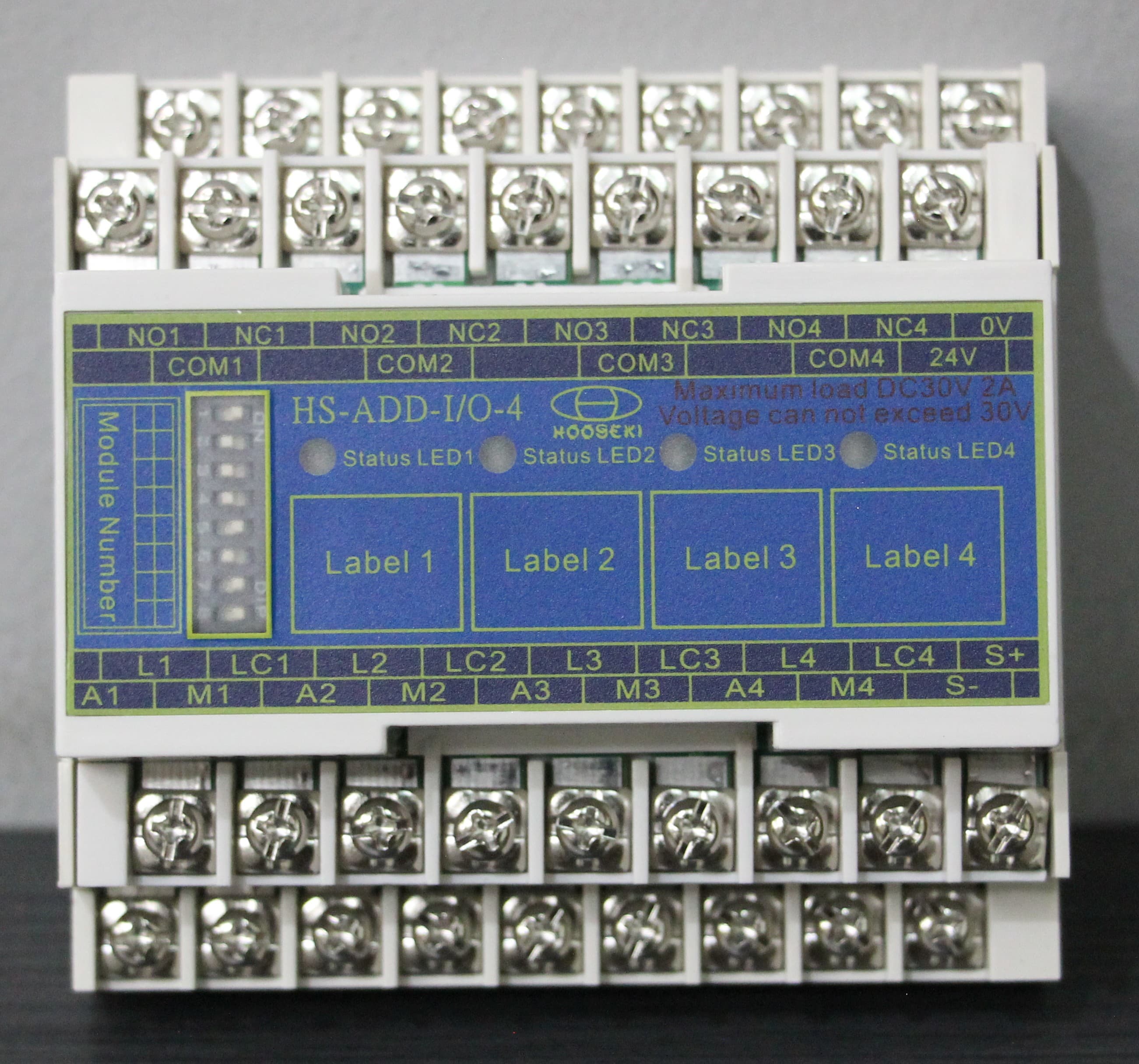

HS-ADD-I/O-4
Control Modules 4 In 4 Out
Specifications:
- EOL : Below 10K Ω capacitor / address
- Operating Environment : 0°C- 50°C relative humidity below 85%
- Monitoring Current : 3.2 mA
- Activating Current : 48mA
- Activating Current : 64mA
- Load Voltage Input : 24V DC
- Rated Voltage : 33V AC
- Output Contact Capacity : 30V DC / 2A
- Material : Flame retardant plastic
- Dimensions : 87 (H) x 93.5 (W) x 43 (D) mm
- Note : EOL capacitor
Features
- Built-in tri-state LED indicator to indicate different statuses, "Monitoring", "Disconnection", and "Fire State".
- Binary coded address dip switch
- Two-wire multi-transmission
- Stable communication with resistance to noise and disturbances
- Self-test function for circuit disconnection and activation
- Expandable to connect with photoelectric smoke, rate of rise heat, and fixed temperature heat detector
- LED indication pattern, as follows: monitoring (flash at intervals of 2.5s), disconnection (flash at intervals 0.5s), and fire state (on)
- Can be fixed on aluminum railings for easy installment
